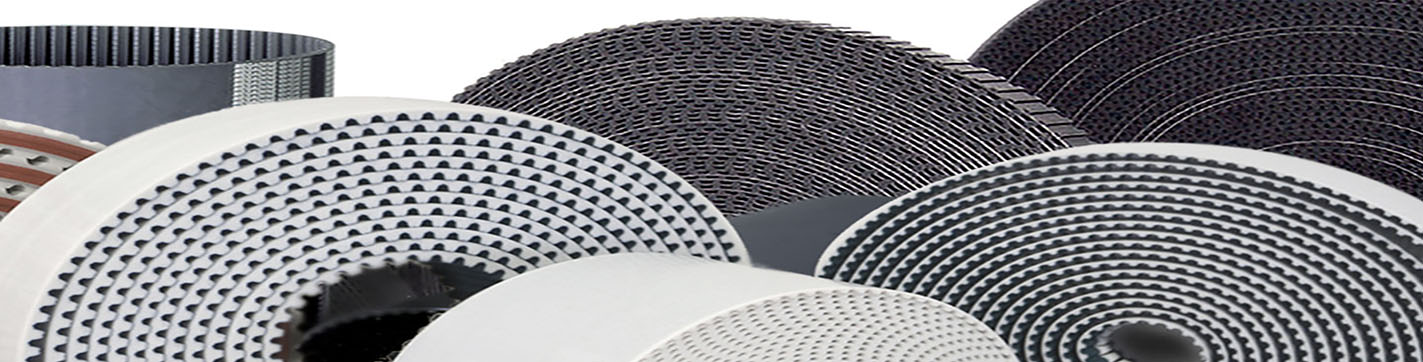

PU Timing belts are manufactured in thermoplastic polyurethane, that gives superior wear and abrasion resistance, steel cord offer good running characteristics with high tractive loads.
| |||
| Type | P (mm) | H (mm) | Ht (mm) |
| HTD5M | 5.0 | 3.7 | 2.2 |
| HTD8M | 8.0 | 5.6 | 3.6 |
| HTD14M | 14.0 | 10.0 | 6.43 |
| ||||
| Type | P (mm) | H (mm) | Ht (mm) | W (mm) |
| H | 12.7 | 4.3 | 2.29 | 4.4 |
| XH | 22.225 | 11.2 | 6.35 | 7.94 |
| L | 9.525 | 3.6 | 1.9 | 3.2 |
| XL | 5.08 | 2.3 | 1.27 | 1.37 |
| ||||
| Type | P (mm) | H (mm) | Ht (mm) | W (mm) |
| AT5 | 5.0 | 2.7 | 1.2 | 2.5 |
| AT10 | 10.0 | 4.5 | 2.5 | 5.0 |
| AT20 | 20.0 | 8.0 | 5.0 | 10.0 |
| ||||
| Type | P (mm) | H (mm) | Ht (mm) | W (mm) |
| T5 | 5.0 | 2.2 | 1.2 | 1.8 |
| T10 | 10.0 | 4.5 | 2.5 | 3.5 |
| T20 | 20.0 | 3.6 | 5.0 | 6.5 |
 | |||
| Type | P (mm) | H (mm) | Ht (mm) |
| STD5M | 5.0 | 3.4 | 1.91 |
| STD8M | 8.0 | 5.1 | 3.05 |
 | |||
| Type | P (mm) | H (mm) | Ht (mm) |
| RPP5M-PAZ | 5.0 | 3.8 | 2.0 |
| RPP8M-PAZ | 8.0 | 5.4 | 3.2 |
| RPP14M-PAZ | 14.0 | 10.0 | 6.0 |
 | |
| Type | H (mm) |
| P2 | 2.0 |
| P4 | 4.0 |
Tolerances of open timing belts:
Width: ±0.5mm
Height: ±0.2mm
