Code Definition

(mm)

Matching type

<<123456>>

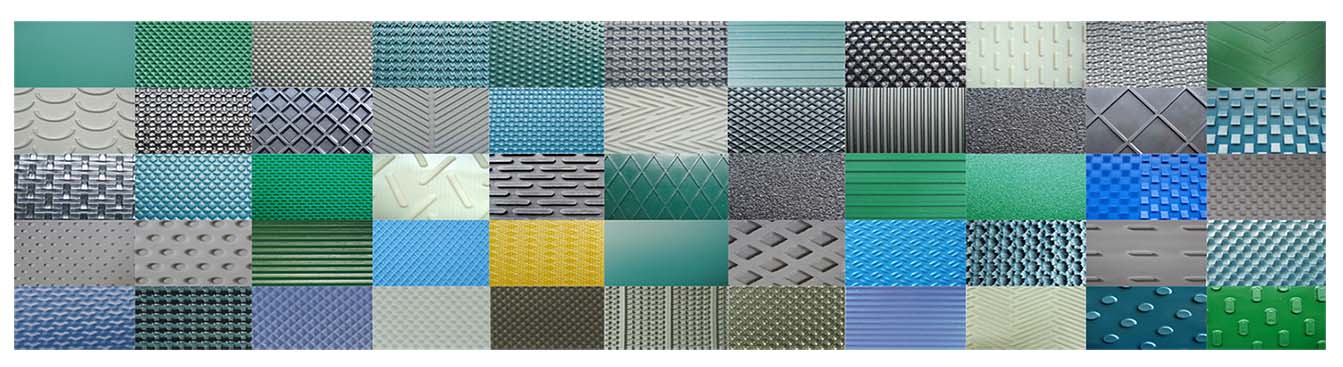

PVC Conveyor Belt PVC conveyor belt is widely used in electronics logistics printing textile ceramics marble processing wood processing and other general industries. It has characteristics of wear-resistant cutting high tensile strength and good flatness. The belt surface has more than 30 kinds of surface patterns to choose.Thickness(mm)1 ~ 13 (customized)ColorGreen White Black Blue (customized)Weight(kg/m2)1.2 ~ 10.9Effective pull at 1% elongation(N/mm)12 ~ 80Temperature range(℃）-15 / +80CharacteristicLateral stability Oil resistant FDA Antistatic Cold resistant Flame retardant Low noise
PU Conveyor Belt


PU conveyor belt produced by Boshun Belting was passed the inspection and accord with FDA regulation. It has characteristics of anti stick, oil resistant, acid and alkali resistance, low temperature resistance, can be in directly contact with food.

Thickness (mm)0.7 ~ 5 (customized)
ColorGreen,White, Blue (customized)
Weight (kg/m2)0.9 ~ 6.0
Effective pull at 1% elongation (N/mm)4.0 ~ 10.0
Temperature range (℃）-20 / +80
CharacteristicLateral stability, FDA, Oil resistant


PE Conveyor Belt
TPEE Conveyor Belt
Silicon Conveyor Belt
